Leak-proof grab

Short Description:

Product Detail

Product Tags

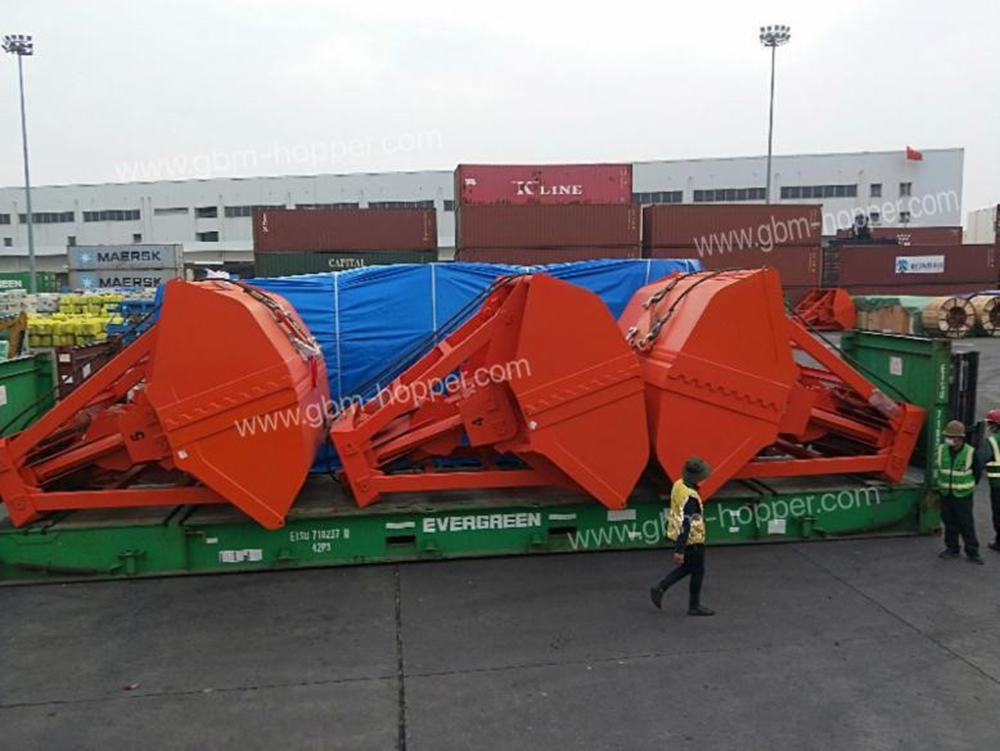

Leak-proof grab is an effective tool for loading and unloading materials in ports, yards and other workplaces. According to the different types of cargo, there are two types of leak-proof grabs, one is a slatted leak-proof, which is used to handle lighter materials such as grain, fertilizer, sulfur, alkali powder, etc., and the other is saw tooth. Anti-leakage is mainly used for grabbing heavy materials that are difficult to grasp, such as iron powder, copper powder and so on.

Connection method:

capacity(m3)	4 times		2.5	3.2	4.0	5.0	6.5	7.9	10.1
capacity(m3)	5 times		2.4	3.2	4.0	4.9	6.4	7.8	10.0
pulley	diameter mm		355	400	450	500	560	630	630
Wire rope	diameter mm		18	20	22	24	26	28	32
	length m	4 times	11.5	12.8	13.8	15.0	16.5	17.8	18.6
	length m	5 times	14.0	15.5	16.8	18.5	20.5	21.8	23.0
	stroke mm	4 times	5940	6600	7100	7680	8520	8920	9760
	stroke mm	5 times	7425	8250	8875	9600	10650	11150	12200
Dimensions(mm)	A		3080	3430	3700	4010	4380	4770	4990
	B		2600	2900	3100	3350	3640	4020	4120
	C		2220	2410	2610	2850	3070	3270	3530
	D		2540	2760	2950	3160	3450	3680	3910
	E		1800	1930	2070	2220	2420	2580	2730
	F		460	600	800	1000	1100	1280	1280
	G		380	430	480	530	590	670	670
