Ecological Hopper

Short Description:

Industry Port Mobile Double truck loading hopper / Industry Port dust collector Mobile type hopper loader for powder made by our company are suitable to load and unload the coal cinder, the cement powder and the iron powder and so on. It can be designed in nonstandard according to the needer.It can be installed on dust catcher, electric hydraulic door, vibrant supplying material devices and working devices. All of these can greatly improve the working efficiency.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Dust controlled Hopper manufacturer in China

    Unloading hopper is an economical and ecologically sensitive solution fulfilling all needs for the efficient import of dry bulk cargoes.Using mobile hoppers for unloading has the advantage of a very flexible solution with a single unit operating efficiency of 300t-1500T /H and can be improved by adding one or more hoppers.

    • ECO hoppers have a large capacity
    • It has a large open area
    • Multiple discharge and travel options
    • Deliver increased safety features
    • Have solid and robust designs
    • Suitable for non-dedicated quays
    • Flexible positioning to fit unloading vessel
    • Manufactured from finest quality structure and high strength steel
    • Extensive dust control features such as dust seals, flex flaps, air compressor, dust filters.
    • Low maintenance system
    • Rates of 5,000 tons per hour may be achieved

    The hoppers are designed to suit the characteristics and flow properties of virtually any bulk material such as:

    • Clinker
    • Cement
    • Copper concentrates
    • Slag
    • Sulphur
    • Gypsum
    • wood chip
    • Limestone
    • Iron ore
    • Bauxite
    • Soda ash
    • Coal
    • Many others

    Technical model for hopper

    No. Model Volume(m3) Loading Weight (t) Hopper weight(t) Max. Total Weight(t) Unloading Capacity(t/h) Note
    001 HP40 40 60 16 80 600 1 outlet eco Hopper
    002 HP50 50 80 19 100 800
    003 HP60 60 100 21 125 1000
    004 HP70 70 120 25 145 1200
    005 HP80 80 140 27 170 1600
    006 HP100 100 160 30 190 2000
    007 HP60-2 60 200 33 235 2500
    008 HP70-2 70 120 27 150 2500 2 outlets eco Hopper
    009 HP80-2 80 140 30 170 2000
    010 HP100-2 100 160 33 195 3200



    Hopper cases oversea

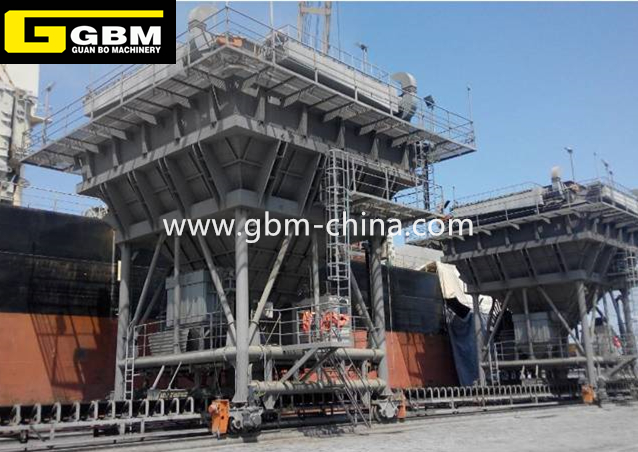

    2 set 80CBM Eco hoppers  for unloading cement and clinker in Cameroon

    Mobile Dust-proof Hopper1



    Production progress of Ecological Hopper
