Port Mobile hopper
Advantages for GBM mobile hopper
1. Eco hoppers is eco-friendly solution for unloading dust cargo.The dust removal efficiency is high, generally above 99%, and the dust concentration in the outlet gas of the dust collector is within tens of mg/m3, which has a high classification efficiency for fine dust with sub-micron particle size.
2. Multiple discharge options: to conveyor, to one truck, to two truck,via telescopic chute, through ancillary Material Feeder
3.Multiple travel options: rail, static or pneumatic tyre mounted and powered and towable travel
4. The port hoppers working efficiency could custom by your need and reach 5000T/H.
5.It is the first high-tech enterprise in China to develop a port hopper with multiple patents
Main structure of port eco hopper
1.The port eco hopper is composed of a grid plate, a palatal opening and closing door, a gantry structure, a mobile wheel group, bag filter collector and a water pipe spray system, a ladder platform, an electrical control system and a remote control system.
2. The eco-hopper meets the requirements of loading and unloading operations for continuous production of three shifts a day at the port.
3. The eco-hopper has sufficient strength and rigidity, the effective volume of the funnel is about 20-50-100 cubic meters, and the size of the opening above the eco hopper is designed according to the capacity of the grab bucket.
GBM movable hopper experience in career
4unit 60CBM Dust proof movable hopper
Project located in Philippines
2 unit 50CBM Dust proof movable hopper
Project located in Ghana
2 unit 30CBM movable Non eco-hopper
Project located in Singapore
4 unit 40CBM movable Non eco-hopper
Project located in Jordan
4 unit 35 CBM movable Non eco-hopper
Project located in Hongkong
2 unit 40 CBM movable Non eco-hopper
Project located in China
4 unit 60CBM movable Dust proof hopper
Project located in Gambia
2 unit 80CBM movable Dust proof hopper
Project located in Tanzania
2 unit 70CBM movable Dust proof hopper
Project located in Russia
RFQ
Yes, every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please see the below hopper type we could produce for you:
Bag-filter Dust-proof hopper
Cyclone Dust-control hopper
Tyre mobile Eco hopper
Fixed stationary Eco hopper
Non-dust proof normal hopper
Double discharge feed hopper
Spray dust removal hopper
Rail type port hopper

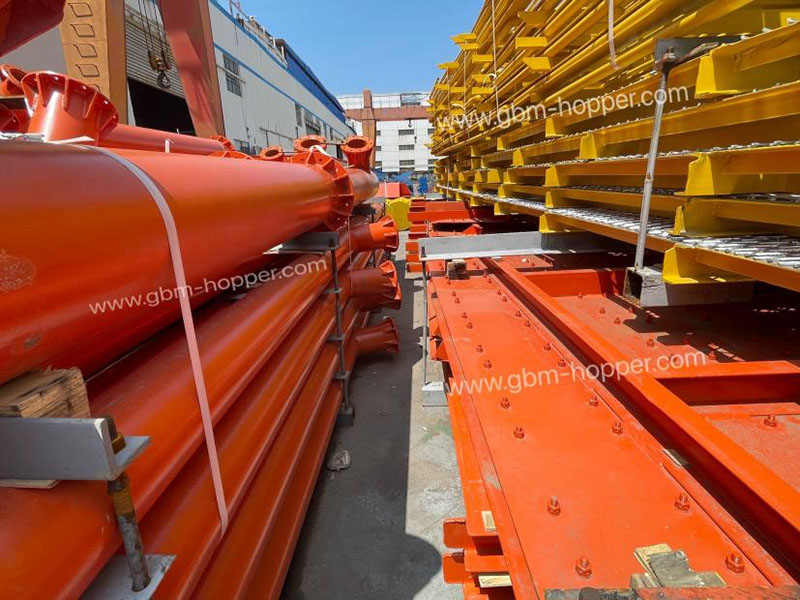

Normally shipping goods in containers ,shipping dust hoppers in containers requires careful planning and preparation. Always make sure the hopper is secured so it doesn't slide around during transport.
GBM have it own experienced department for safe delivery,utilizing the services of a professional will ensure that the hopper is securely in place and the container is ready to ship.
Yes, GBM has own installation teams in China and overseas,we can provide service even during covid-19.Also, any kind of lifting tools will available for your instruction.
1.What kind of Bulk Hopper you need, Simple one or Dust proof type?
2. What's the material you usually handle and material density?
3. The hopper capacity do you need?How about the grab capacity, the grab open size?
4. Do you need fixed hopper or mobile hopper Does unloading hopper move by itself or by other machine?
5. Will the eco hopper unloading into truck or conveyor belt,?
6. What's the dust removal efficiencyand the handling efficiency(_T/_h) you want?
1) The general layout of the hopper(including the main dimensions and performance parameters) and the structure specification.
2) Layout drawing, assembly drawing and processing drawing of wearing parts of each mechanism of the hopper
3) Electrical equipment system diagram, layout diagram, wiring diagram, and control principle diagram.
4) Cable, conduit or trunking layout.
5) The schematic diagram of the hydraulic system and its description.
6) Product structure diagram of purchased parts, instruction manual and maintenance manual.
